Camlock Seals & Gaskets
Camlock couplings, also known as cam and groove couplings, provide a quick and reliable method of connecting and disconnecting hose and process pipework. The Camlock gasket is located within the female coupler and creates the sealing interface against the male adaptor when the cam arms are closed.
International Seal supplies Camlock seals for food & beverage, chemical, fluid-transfer and general industrial applications. Our range is available in standard sizes from ½” to 6″, with a choice of elastomer and specialist compounds to suit different process media, temperatures and operating environments.
Camlock Seal Specifications
Camlock gaskets are available for standard cam and groove coupling systems used across hose, pipework and fluid-transfer equipment.
- Sizes 1/2" to 6"
- Suitable for Cam & Groove Coupling
- NBR, EPDM, FKM, Silicone & PTFE
- Food-Contact & Medical Grades Available
- Metal & X-Ray Detectable Options
- Available to Order — Ask us for Lead Time
Materials
Camlock seals are available in a range of elastomer compounds, allowing the gasket to be selected according to the fluid being transferred, operating temperature and application conditions.
| Material | Typical Applications |
|---|---|
| NBR | Oils, fats and general-purpose applications |
| EPDM | Water, hot water, steam and hygienic processing |
| FKM | Oils, chemicals and elevated temperatures |
| Silicone | Temperature extremes and hygienic applications |
The correct sealing material should always be selected against the complete operating conditions. For additional guidance, see our Chemical Compatibility Guide and Elastomer Temperature Range Guide.
Typical Applications
Camlock seals are used wherever cam and groove couplings provide quick-connect hose or pipework connections for transferring liquids, powders and other process media. Because Camlock connections can be connected and disconnected rapidly without complex tooling, they are widely used across production, transfer, loading and maintenance operations.
Typical applications include:
- Food & Beverage Process Lines
- Dairy Processing Equipment
- Breweries & Beverage Systems
- Pumps, Valves & Tanks
- CIP Cleaning Systems
- Pharmaceutical & Hygienic Processing
Material selection should consider the process media, concentration, operating temperature, pressure and frequency of coupling use.

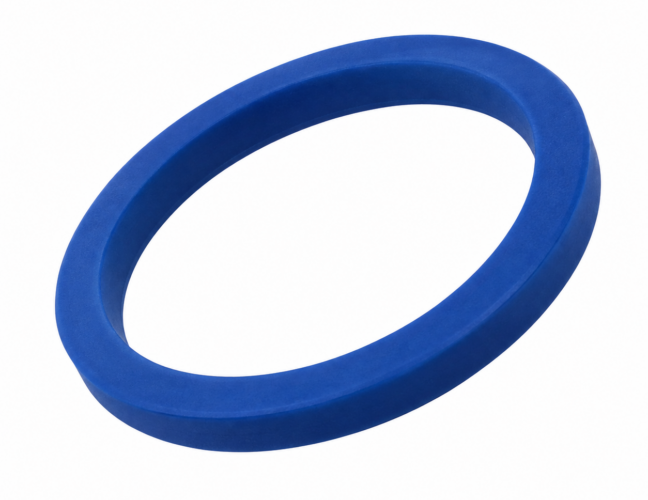

Metal Detectable Camlock Gaskets
Metal and X-ray detectable Camlock gaskets are available for food, beverage and other processing environments where foreign-body contamination control forms part of the production system. Detectable compounds incorporate specialist additives designed to improve the ability of metal detection or X-ray inspection equipment to identify fragments of sealing material if a gasket becomes damaged during use.
Detectable options are available in selected elastomer grades suitable for food and hygienic processing applications. Detection performance depends on the compound, fragment size, product being inspected and the sensitivity and configuration of the inspection equipment. Detectable Camlock seals should therefore be validated under the customer’s actual production conditions.
Need a Camlock Seal?
Send us the size, material and quantity you need, or simply send a photo if you’re unsure which Camlock seal you have. We can help identify the correct seal and provide pricing, availability and lead time.
We aim to respond to all enquiries within one business day.
