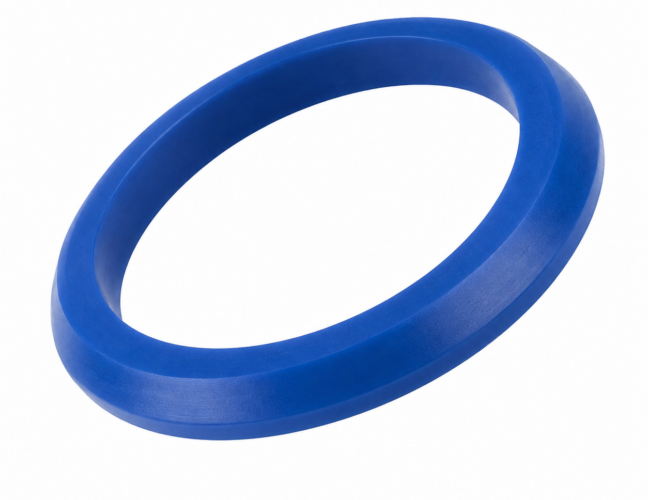

Bevel Seat Gasket
Bevel Seat gaskets are designed for sanitary pipe connections commonly used across dairy processing, food & beverage production and pharmaceutical equipment. The gasket sits between the mating Bevel Seat components and provides the sealing interface when the connection is assembled and tightened. The profiled sealing surface is designed to match the bevelled fitting and provide a secure seal within the connection.
International Seal supplies Bevel Seat gaskets and sanitary seals for hygienic process equipment used throughout the dairy, pharmaceutical, food & beverage industries. Our Bevel Seat range is available in standard sizes from 1″ to 4″, with a wide choice of elastomer and specialist materials to suit different process media, temperatures and hygiene requirements.
Bevel Seat Gasket Specifications
Bevel Seat gaskets are available for sanitary process connections used throughout hygienic pipework and equipment.
- Sizes 1" to 4"
- Designed for sanitary Bevel Seat fittings
- NBR, EPDM, FKM & Silicone
- Profiled Sealing Design
- Food-Contact Grades Available
- Metal & X-Ray Detectable Options
- Available to Order — Ask us for Lead Time
Materials
Bevel Seat gaskets are available in a range of elastomer and specialist materials, allowing the seal to be selected according to the process media, operating temperature, cleaning regime and regulatory requirements.
| Material | Typical Applications |
|---|---|
| NBR | Oils, fats and general-purpose applications |
| EPDM | Water, hot water, steam and hygienic processing |
| FKM | Oils, chemicals and elevated temperatures |
| Silicone | Temperature extremes and hygienic applications |
The correct material should always be selected against the complete operating conditions rather than the product media alone. For additional guidance, see our Chemical Compatibility Guide and Elastomer Temperature Range Guide.
Typical Applications
Bevel Seat gaskets are widely used throughout sanitary process systems where connections need to provide a reliable seal while remaining accessible for cleaning, inspection and maintenance.
They are commonly found on established food, beverage and dairy processing equipment and sanitary process pipework.
- Food & Beverage Process Lines
- Dairy Processing Equipment
- Breweries & Beverage Systems
- Pumps, Valves & Tanks
- CIP Cleaning Systems
- Pharmaceutical & Hygienic Processing
Material selection should consider the process media, cleaning chemicals, operating temperature and any food-contact or regulatory requirements.
Metal Detectable Bevel Seats
Metal and X-ray detectable Bevel Seat gaskets are available for food, beverage, dairy and other hygienic processing environments where foreign-body contamination control forms part of the production system.
Detectable compounds incorporate specialist additives designed to improve the ability of metal detection or X-ray inspection equipment to identify fragments of sealing material if a gasket becomes damaged during production. Detectable options are available across selected elastomer grades suitable for hygienic sealing applications.
Detection performance depends on the compound, fragment size, product being inspected and the sensitivity and configuration of the inspection equipment. Detectable Bevel Seat seals should therefore be validated under the customer’s actual production conditions.
Need a Bevel Seat Gasket?
Send us the size, material and quantity you need, or simply send a photo if you’re unsure which Bevel Seat gasket you have. We can help identify the correct seal and provide pricing, availability and lead time.
We aim to respond to all enquiries within one business day.
